Telephone Network History and Modern Regulation

The telephone network has a rich history that spans over a century. It all started with the invention of the first telephone by Alexander Graham Bell in 1876.

The first telephone switchboard was established in 1877, and it was operated by a human operator who connected calls manually. The switchboard was a major innovation in telephone technology.

The first automatic telephone switch was invented in 1891 by Almon Strowger, a undertaker from Kansas City. This invention revolutionized the telephone industry by allowing calls to be connected automatically.

The telephone network expanded rapidly in the early 20th century, with the number of telephone subscribers increasing from 100,000 in 1894 to 1 million in 1908.

Suggestion: Invention of the Telephone

A telephone network is a system used to provide voice communication between people. It's a vital part of our daily lives, and it's hard to imagine a world without it.

The telephone network uses circuit switching, which means that a dedicated connection is established between two points for the duration of a call. This was originally done using analog signals, but with the advancement of technology, the network has become both analog and digital.

Expand your knowledge: Analog Telephone Adapter

Local loops are the twisted pair cables that connect a subscriber's telephone to the nearest end office or local central office. These cables have a bandwidth of 4000 Hz, which is sufficient for voice purposes.

There are three major components of a telephone network: local loops, trunks, and switching offices. These components work together to enable communication between subscribers.

The telephone network is made up of various levels of switching offices, including end offices, tandem offices, and regional offices. Each of these offices plays a crucial role in connecting subscribers.

The local loop number is defined by the next four digits after the first three digits, which define the office. This unique number helps identify each local loop.

A trunk is a type of transmission medium used to handle communication between offices. Through multiplexing, trunks can handle hundreds or thousands of connections, making them a vital part of the network.

The telephone network has many advantages, including being able to connect people, facilitate business communication, and provide recreational services.

Here are some of the applications of the telephone network:

The history of the telephone network is a fascinating story. Commercialization of the telephone began shortly after its invention, with instruments operated in pairs for private use between two locations.

Users had to whistle loudly into the transmitter to alert the other party, but bells were soon added to stations for signaling. Later, telephone systems took advantage of the exchange principle already employed in telegraph networks, with each telephone wired to a local exchange.

The growth of the PSTN was enabled by teletraffic engineering techniques to deliver quality of service (QoS) in the network. A. K. Erlang established the mathematical foundations of methods required to determine the capacity requirements and configuration of equipment.

Regulatory agencies play a crucial role in provisioning PSTN services, regulating technical standards, legal requirements, and setting service tasks to ensure end customers are not over-charged.

Discover more: AXE Telephone Exchange

The history of the telephone network is a fascinating story. Commercialization of the telephone began shortly after its invention, with instruments operated in pairs for private use between two locations. Users who wanted to communicate with persons at multiple locations had as many telephones as necessary for the purpose. Alerting another user of the desire to establish a telephone call was accomplished by whistling loudly into the transmitter until the other party heard the alert.

Bells were soon added to stations for signaling, making communication a bit more efficient. Later telephone systems took advantage of the exchange principle already employed in telegraph networks. Each telephone was wired to a telephone exchange established for a town or area.

Automation introduced pulse dialing between the telephone and the exchange so that each subscriber could directly dial another subscriber connected to the same exchange. Long-distance calling across multiple exchanges required manual switching by operators. The growth of the PSTN was enabled by teletraffic engineering techniques to deliver quality of service (QoS) in the network.

The work of A. K. Erlang established the mathematical foundations of methods required to determine the capacity requirements and configuration of equipment and the number of personnel required to deliver a specific level of service. In the 1970s, the telecommunications industry began implementing packet-switched network data services using the X.25 protocol. These became known as public data networks, or public switched data networks.

As of 2023, operators worldwide are in the process of retiring support for both last-mile analog telephony and ISDN, and transitioning voice service to Voice over IP via Internet access delivered either via DSL, cable modems or fiber-to-the-premises.

For more insights, see: Subscriber Location Function

In most countries, the government has a regulatory agency dedicated to provisioning of PSTN services.

These regulatory agencies regulate technical standards and legal requirements to ensure that end customers are not over-charged for services where monopolies may exist.

Regulatory agencies also set service tasks to ensure fair practices among operators.

They regulate the prices charged between operators to carry each other's traffic, preventing unfair price hikes.

Expand your knowledge: Call-recording Services

The Public Switched Telephone Network (PSTN) is a complex system that relies on several key components to provide reliable and efficient voice communication services. These components work together seamlessly to connect subscribers across the globe.

At the heart of the PSTN is the local exchange, also known as a central office. It connects subscribers within a specific geographic region and routes their calls to the appropriate destinations. This component is crucial for managing the flow of communication within local telephone networks.

Switching centers are the backbone of the PSTN, responsible for routing calls between different local exchanges. They ensure calls are efficiently connected to their intended recipients, whether they are across town, the country, or somewhere else in the world.

Discover more: B and O Telephone

Telephone lines, made of copper wires, fiber optic cables, or a combination of both, carry voice data between subscribers and the local exchange. These physical connections can offer varying levels of speed and reliability.

Fiber optic cables are a critical component in modernizing traditional telephone networks, transmitting voice signals between switching centers and local exchanges with high-speed data transmission capabilities and resistance to interference.

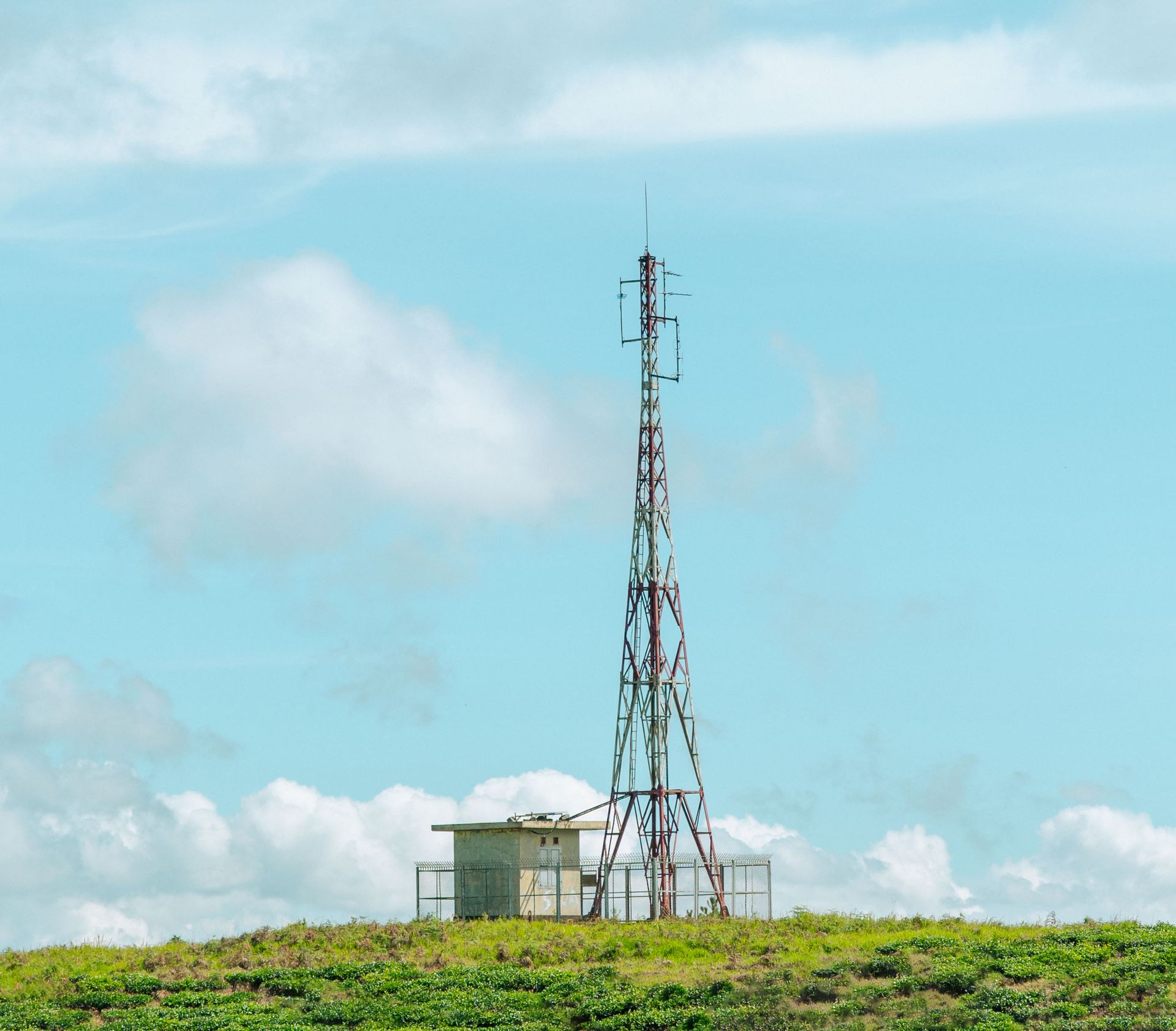

Cellular networks, which consist of cell towers that transmit and receive voice data packets to and from mobile devices, expand the reach of the PSTN. They integrate with landlines to provide mobile phone services.

Satellites play a crucial role in remote areas where traditional infrastructure is not feasible, transmitting and receiving voice signals to and from satellite phones. This ensures that even the most isolated locations can stay connected and connect with traditional phone systems.

Here is a list of the key components of the PSTN:

Switching technology has come a long way since the first manual switchboard was installed in New Haven, Connecticut in 1878, allowing up to 21 customers to reach each other.

The first fully automatic switch to achieve commercial success was invented by Almon B. Strowger in 1889, using a step-by-step mechanism controlled by pulses from the telephone instrument. Later, a rotary dial was introduced in 1896 to generate the necessary pulses.

The crossbar switch, patented by J.N. Reynolds in 1913, was a significant improvement, allowing for up to 10 simultaneous connections and becoming the workhorse of the Bell System.

Switched telephone networks use four main types of switches: Local Exchange, Tandem Office, Toll Office, and International Gateway. These switches handle different aspects of call routing, from local connections to global communication.

Here's a breakdown of the main types of switches used in switched telephone networks:

In 1878, the first telephone exchange was installed in New Haven, Connecticut, allowing up to 21 customers to connect with each other.

The manual switchboard was quickly expanded to accommodate hundreds of lines. Each line was connected to the switchboard in a socket called a jack.

A set of short, flexible circuits with plugs on both ends, called cords, were provided for interconnecting lines. Two lines could be connected by inserting the ends of a cord into the corresponding jacks.

The first automatic switch to achieve commercial success was invented in 1889 by Almon B. Strowger, an undertaker from Kansas City, Missouri. His invention, the Strowger switch, consisted of two main parts: a bank of 100 terminals and a movable switch called the brush.

The Strowger switch was a step-by-step switch, with the brush moved up and down the cylinder by one ratchet mechanism and rotated around the arc by another. This allowed it to be brought to the position of any of the 100 terminals.

In the original systems, callers generated pulses by rapidly pushing a button switch on the instrument. Later, in 1896, Strowger's associates devised a rotary dial for generating the necessary pulses.

The first commercially successful crossbar switch was patented by J.N. Reynolds in 1913 and became known as the crossbar switch. It was a grid composed of five horizontal selecting bars and 20 vertical hold bars.

Here's an interesting read: Class-5 Telephone Switch

The crossbar switch provided up to 10 simultaneous connections, with the five selecting bars able to be rotated to make connections with the hold bars. This effectively gave the switch 10 horizontal rows.

The first crossbar system was demonstrated by Televerket, the Swedish government-owned telephone company, in 1919. However, it was the AT&T No. 1 crossbar system, first installed in Brooklyn, N.Y., in 1938, that became the first commercially successful system.

Additional reading: Ip Telephone System

The backbone of the Public Switched Telephone Network (PSTN) is switching technology, which enables efficient routing and connection of calls. This technology has come a long way since the first telephone exchange was installed in 1878 in New Haven, Connecticut.

Local exchanges are the heart of the PSTN, handling up to 10,000 telephone lines in a specific area and routing calls to their destination using unique phone numbers. Each line is terminated on the switchboard in a socket called a jack.

Suggestion: Destination Routing

The first fully automatic switch to achieve commercial success was invented in 1889 by Almon B. Strowger, who used a movable switch called the brush to connect calls. This switch was later improved upon by J.N. Reynolds, who patented the crossbar switch in 1913.

The crossbar switch is a grid composed of five horizontal selecting bars and 20 vertical hold bars, which can be rotated to make connections with the hold bars. This switch became the workhorse of the Bell System and was used to handle up to 35,000 voice circuits.

Switched telephone networks use four main types of switches: Local Exchange, Tandem Office, Toll Office, and International Gateway. These switches work together to route calls efficiently and effectively.

Here's a breakdown of the four main types of switches used in the PSTN:

In the early days of telephony, manual switching was the norm, but it was soon replaced by electromechanical switching, which used a movable switch to connect calls.

The telephone network offers a range of services and features that have been the backbone of reliable voice communication for decades.

The Public Switched Telephone Network (PSTN) enables voice calls between subscribers, allowing people to communicate clearly and reliably.

International calls are a standout feature of the PSTN, allowing subscribers to connect with individuals in other countries.

Local exchange services are essential for everyday communication within communities, enabling subscribers to make calls within their local area.

Call forwarding services allow subscribers to redirect incoming calls to another phone number, ensuring that important calls are not missed.

Call waiting services ensure that users do not miss important communications, allowing them to receive incoming calls even while they are already on another call.

Conference calling is invaluable for business meetings and group discussions, enabling multiple subscribers to participate in a single call.

Speed dial allows subscribers to program frequently dialed numbers into short code sequences, so they can be called quickly.

Suggestion: Why Telephone Is Important

Voicemail allows callers to leave recorded messages in a voice mailbox, which users can retrieve locally or remotely.

Caller ID displays the incoming caller's phone number (and sometimes name) on a Caller ID-capable phone or device before the call is answered.

Some of the key services and features of the PSTN include:

The PSTN is renowned for its security and reliability, making it a trusted choice for voice communication.

Encryption is a key security feature of PSTN, helping to prevent eavesdropping and interception of calls.

Authentication protocols verify the identity of callers and prevent unauthorized access to the network.

Redundancy in the network, with backup systems and power sources, ensures continuous service during outages.

Quality of Service (QoS) is prioritized by PSTN providers, who prioritize voice traffic to ensure high-quality calls with minimal latency.

However, PSTN is not immune to security threats like toll fraud, where hackers exploit vulnerabilities to make unauthorized calls.

Eavesdropping and Denial of Service (DoS) attacks are also potential threats to the PSTN network.

The Public Switched Telephone Network (PSTN) has been a reliable communication system for decades. However, it's facing significant challenges in the modern era.

Declining revenue is a major issue for the PSTN, with the rise of Voice over Internet Protocol (VoIP) and other internet-based communication services eating into its revenue. This is largely due to the cost-effectiveness of these modern alternatives.

The circuit-switching technology that underpins the PSTN limits its adaptability to modern communication needs. This makes it less suitable for the demands of today's digital world.

Maintenance and upgrades of the PSTN infrastructure are an ongoing challenge. Regular maintenance is required to ensure reliability and efficiency, but these efforts can be costly and labor-intensive.

The PSTN can integrate with VoIP and other technologies to create hybrid systems. These systems leverage the strengths of both traditional and modern communication methods, offering tailored solutions for specific needs.

The future of the PSTN is uncertain, but it may continue to play a crucial role in certain areas. For example, it remains essential for emergency services, rural areas with limited internet access, and network interoperability.

Here's an interesting read: Telephone Services in Turkey

Regular maintenance is essential to prevent issues before they arise in the Public Switched Telephone Network (PSTN). Software updates and hardware checks are performed by providers to keep the network running smoothly.

Common issues like call drops, poor call quality, busy signals, and no dial tone can occur, but providers can identify and resolve them using specialized tools and techniques. Providers monitor the network in real-time to detect and address these issues promptly.

Customer support is a vital component of PSTN maintenance, helping users troubleshoot and resolve problems. By following these steps, PSTN providers can ensure the network remains reliable and users can enjoy high-quality voice communication.

You might like: Telephone Call Recording Laws

The PSTN has been around for a long time, but its limitations have led to the development of more modern communication systems.

Internet telephony is a cost-effective alternative to traditional telephony, offering numerous advantages such as transmitting voice over the internet.

Maintaining the PSTN infrastructure is costly, which is why many businesses are turning to more efficient solutions.

IP telephony provides advanced features and efficiency, making it a scalable solution for businesses.

VoIP and cloud voice solutions have become a game-changer for communication, offering a cost-effective and reliable alternative to traditional telephony.

The impact of PSTN networks on IP standards is a fascinating topic. Voice quality in PSTN networks was used as a benchmark for the development of the Telecommunications Industry Association's TIA-TSB-116 standard on voice-quality recommendations for IP telephony.

This standard aimed to determine acceptable levels of audio latency and echo, ensuring a seamless transition to IP telephony.

For more insights, see: IP Multimedia Subsystem

The old PSTN system has its limitations, and it's high time for a change. The technology behind PSTN remains largely unchanged since the last century.

Internet telephony has revolutionized the way we communicate, transmitting voice over the internet and offering numerous advantages over traditional telephony.

Maintaining the PSTN infrastructure is a costly affair, which is why businesses are turning to more cost-effective solutions. IP telephony provides advanced features and efficiency, making it a scalable solution for businesses.

VoIP and modern cloud voice solutions have become a game-changer for communication, offering a range of benefits over traditional PSTN.

Additional reading: Internet Shopping Network

Telephone networks have come a long way, and one of the most significant advantages of modern telephone systems is their cost-effectiveness.

VoIP (Voice over Internet Protocol) technology is a game-changer when it comes to international calls, making them significantly cheaper compared to traditional PSTN phone systems.

Advanced features like call forwarding, voicemail-to-email, and video conferencing are now possible with VoIP, making communication more efficient and convenient.

One of the biggest advantages of VoIP is its scalability – it's easy to scale as businesses grow, unlike PSTN, which requires new physical lines.

VoIP also offers flexibility, allowing calls from any internet-connected device, unlike PSTN's reliance on landlines.
