Reflector Antenna Fundamentals and Applications Explained

Reflector antennas are a type of directional antenna that uses a flat or curved surface to reflect electromagnetic waves back to a central point.

Their design allows them to focus the signal in a specific direction, increasing the antenna's gain and effectiveness.

A key feature of reflector antennas is their ability to operate at a variety of frequencies, from high-frequency radio waves to microwave frequencies.

An antenna is a device that reflects electromagnetic signals, specifically designed to function at high microwave frequencies.

Antennas come in various shapes and sizes, but the most popular type is the reflector antenna.

The reflector antenna is designed to be lightweight and simple in structure, making it ideal for use in spacecraft antenna systems.

It's made with various reflectors, such as those with hyperbolic, parabolic, spheroid, or ellipsoid surfaces.

The parabolic surface is the most frequently used design for reflector antennas.

Here's an interesting read: Parabolic Antenna

Reflector antennas come in various shapes and sizes, each designed to optimize performance in specific applications.

A parabolic reflector is one of the most common types, constructed from sheet metal, a metal screen, or a wire grill.

To achieve maximum gain, the shape of the dish needs to be accurate within a small fraction of a wavelength, around one sixteenth wavelength.

Spherical reflectors are designed with a spherical surface, similar to cylindrical reflectors, allowing for the collimation of energy from active elements toward the forward direction.

These reflectors are made up of elements of spherical surfaces and are typically sized to be one-half of a sphere.

They are mainly used for collimating the energy from the active elements toward the forward direction, providing a focused signal.

Parabolic reflector antennas are a type of reflector antenna that is designed in a paraboloid structure by using the parabola properties. They are a type of reflector antenna that is designed in a paraboloid structure by using the parabola properties.

The parabolic reflector antenna changes from spherical to plane wave by reflecting the waves produced by the horn antenna over the reflector. This reflector simply reflects them to form a plane wavefront.

The properties of a parabola are helpful for building an antenna using the waves reflected. All the waves originating from focus reflect back to the parabolic axis, and as the waves are in phase, the beam of radiation along the parabolic axis will be strong and concentrated.

On a similar theme: Cb Ground Plane Antenna

The parabolic reflector antenna is used for both transmitting and receiving signals. When used for transmitting, the signal from the feed comes out of a dipole or a horn antenna to focus the wave on to the parabola. When used for receiving, the electromagnetic wave hits the shape of the parabola, and the wave gets reflected onto the feed point.

The gain of the paraboloid is a function of aperture ratio (D/). The Effective Radiated Power (ERP) of an antenna is the multiplication of the input power fed to the antenna and its power gain.

The f/D ratio, which is the ratio of focal length to aperture size, is an important parameter of parabolic reflector. Its value varies from 0.25 to 0.50.

A Cassegrain feed is another type of feed given to the reflector antenna. In this type, the feed is located at the vertex of the paraboloid, and a convex shaped reflector, which acts as a hyperboloid, is placed opposite to the feed of the antenna.

The feed antenna at the reflector's focus is typically a low-gain type, such as a half-wave dipole or a small horn antenna called a feed horn. In more complex designs, a secondary reflector is used to direct the energy into the parabolic reflector from a feed antenna located away from the primary focal point.

Here are some common shapes of parabolic antennas:

These shapes are used to create different beam shapes and to reduce the weight and wind loads on the dish.

A parabolic reflector can be constructed from sheet metal, a metal screen, or a wire grill, and can be either a circular dish or various other shapes to create different beam shapes.

To achieve the maximum gain, the shape of the dish needs to be accurate within a small fraction of a wavelength, around one sixteenth wavelength, to ensure the waves from different parts of the antenna arrive at the focus in phase.

The reflector can be made of a grill of parallel wires or bars oriented in one direction, which acts as a polarizing filter as well as a reflector, only reflecting linearly polarized radio waves with the electric field parallel to the grill elements.

A shiny metal parabolic reflector can also focus the sun's rays, but to prevent overheating, solid reflectors are always given a coat of flat paint.

A fresh viewpoint: Offset Dish Antenna

Integrated reflectors play a crucial role in modifying the radiation pattern of an antenna, increasing gain in a specific direction.

A parabolic reflector, for instance, can focus a beam signal into one point or direct a radiating signal into a beam.

You can also use a passive element, slightly longer than and located behind a radiating dipole element, to absorb and re-radiate the signal in a directional way, as seen in a Yagi antenna array.

A flat reflector, on the other hand, is used in Short backfire antennas or Sector antennas.

The corner reflector, commonly used in UHF television antennas, is another type of integrated reflector.

Cylindrical reflectors are used in Cantenna, where they help to direct the signal in a specific direction.

Some common types of integrated reflectors include:

Designing an antenna with an integrated reflector involves considering several key parameters that can significantly impact its performance. The dimensions of the reflector, for instance, play a crucial role in determining the antenna's overall performance.

A big, ugly dish versus a small dish can have a significant impact on the antenna's performance. The spillover, or the amount of radiation that misses the reflector, is another critical factor to consider.

Curious to learn more? Check out: S Band

Aperture blockage, which occurs when part of the feed energy is reflected back into the feed antenna and doesn't contribute to the main beam, is a major gain-degrading factor. This can be caused by shadowing from the feed, subreflector, and/or support members.

Reflector surface deviation and defocusing can also lead to reduced gains. Cross polarization and feed losses are other important factors to consider.

The standard symmetrical, parabolic, Cassegrain reflector system is a popular choice due to its minimal feeder length, but it has a major disadvantage: blockage by the hyperbolic sub-reflector and its supporting struts.

To avoid blockage, asymmetric designs like the open Cassegrain can be employed, but they may have deleterious effects on the antenna's performance.

Here are some key design criteria to keep in mind:

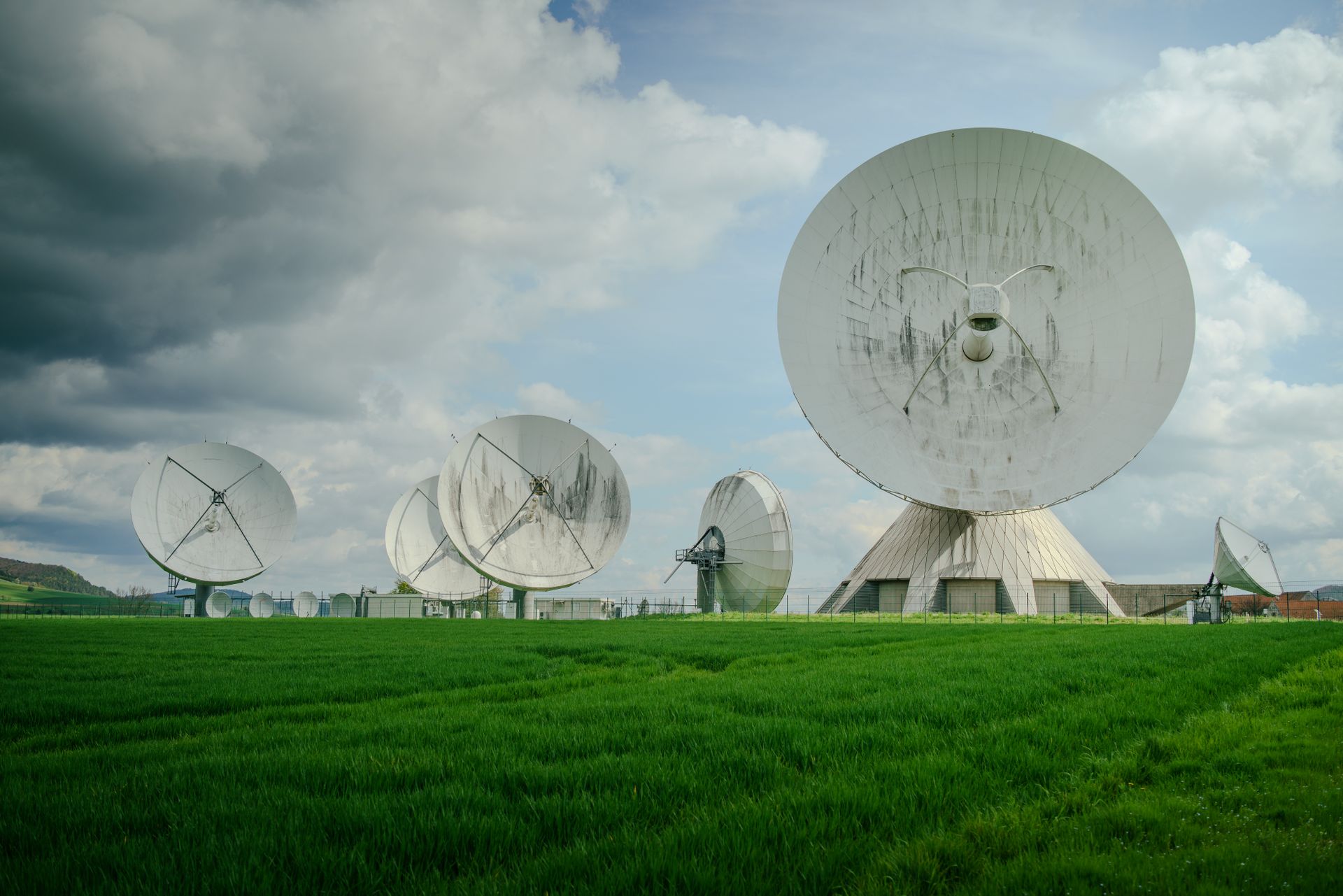

A parabolic dish antenna is a type of antenna that uses a parabolic reflector to focus incoming radio waves onto a small feed antenna. The reflector is typically made of a metal sheet or screen, and its shape is crucial in determining the antenna's performance.

The shape of the parabolic dish is a paraboloid, which is a curved surface that can focus incoming radio waves onto a single point. This is achieved by using a reflective material, such as metal, that is shaped into a paraboloid.

The feed antenna is usually a low-gain type, such as a half-wave dipole or a small horn antenna called a feed horn. It's connected to the associated radio-frequency (RF) transmitting or receiving equipment by means of a coaxial cable transmission line or waveguide.

The size of the parabolic dish determines its gain and directivity. A larger dish will have a higher gain and narrower beam width, while a smaller dish will have a lower gain and wider beam width.

Here are some common types of parabolic dish antennas:

The gain of the paraboloid is a function of aperture ratio (D/λ), where D is the diameter of the dish and λ is the wavelength of the radio wave. The Effective Radiated Power (ERP) of an antenna is the multiplication of the input power fed to the antenna and its power gain.

In summary, a parabolic dish antenna is a type of antenna that uses a parabolic reflector to focus incoming radio waves onto a small feed antenna. Its shape and size determine its performance, and it's commonly used in a variety of applications, including communication systems and radar antennas.

Intriguing read: Gain (antenna)

A parabolic antenna's feed antenna is typically a low-gain type, such as a half-wave dipole or a small horn antenna called a feed horn. This type of antenna is used to direct the energy into the parabolic reflector from a feed antenna located away from the primary focal point.

In many parabolic antennas, the RF front end electronics of the receiver is located at the feed antenna, and the received signal is converted to a lower intermediate frequency (IF) so it can be conducted to the receiver through cheaper coaxial cable. This is called a low-noise block downconverter.

The feed antenna is connected to the associated radio-frequency (RF) transmitting or receiving equipment by means of a coaxial cable transmission line or waveguide. At the microwave frequencies used in many parabolic antennas, waveguide is required to conduct the microwaves between the feed antenna and transmitter or receiver.

The polarization of a parabolic antenna is determined by the feed antenna, and to achieve maximum gain, both feed antennas (transmitting and receiving) must have the same polarization. For example, a vertical dipole feed antenna will radiate a beam of radio waves with their electric field vertical, called vertical polarization.

A dual polarization antenna can transmit two separate radio channels on the same frequency with orthogonal polarizations, using separate feed antennas. This is achieved by using two small monopole antennas in the feed horn, oriented at right angles, to receive the signals.

Check this out: Skelton Transmitting Station

Rod reflectors are a type of antenna that play a crucial role in improving the gain of an antenna.

A rod-type reflector is mainly utilized in a Yagi-Uda antenna and is arranged at a particular distance in the back of the driven element within the antenna.

The rod reflector has a length above the driven element length that is a half-wave dipole, which helps to guide the radiated field in the backward direction to the driven element.

This helps in decreasing the losses because of the back-reflected wave, making the antenna more efficient.

The reflector in the antenna simply provides inductive reactance, which is essential for improving the gain of the antenna.

Suggestion: 5 8 Wave Cb Antenna

A feed antenna is typically a low-gain type, such as a half-wave dipole or a small horn antenna called a feed horn.

The feed antenna is connected to the associated radio-frequency (RF) transmitting or receiving equipment by means of a coaxial cable transmission line or waveguide.

See what others are reading: Horn Antenna

At the microwave frequencies used in many parabolic antennas, waveguide is required to conduct the microwaves between the feed antenna and transmitter or receiver.

Most of the structure of the antenna, except the feed antenna, is nonresonant, so it can function over a wide range of frequencies.

Replacing the feed antenna with one that operates at the desired frequency is all that's necessary to change the frequency of operation.

Some parabolic antennas transmit or receive at multiple frequencies by having several feed antennas mounted at the focal point, close together.

The radiation pattern of the feed antenna has to be tailored to the shape of the dish, because it has a strong influence on the aperture efficiency.

Radiation from the feed that falls outside the edge of the dish is called spillover and is wasted, reducing the gain and increasing the backlobes.

The ideal radiation pattern of a feed antenna would be a constant field strength throughout the solid angle of the dish, dropping abruptly to zero at the edges.

However, practical feed antennas have radiation patterns that drop off gradually at the edges, so the feed antenna is a compromise between acceptably low spillover and adequate illumination.

For most front feed horns, optimum illumination is achieved when the power radiated by the feed horn is 10 dB less at the dish edge than its maximum value at the center of the dish.

Broaden your view: Defence High Frequency Communications Service

Measurements are crucial to establish important performance indicators, such as gain and sidelobe levels, and must be made at a distance where the beam is fully formed, typically four Rayleigh distances.

A distance of four Rayleigh distances is commonly adopted as the minimum distance for measurements, unless specialized techniques are used.

The radiation pattern of parabolic antennas is complex, with virtually all power concentrated in a narrow main lobe and the residual power radiated in sidelobes, usually much smaller.

The main lobe is along the antenna's axis, while the sidelobes are in other directions, and there is also usually a backlobe due to spillover radiation from the feed antenna.

The angular width of the beam radiated by high-gain antennas is measured by the half-power beam width (HPBW), which is the angular separation between the points on the antenna radiation pattern at which the power drops to one-half (-3 dB) its maximum value.

For a typical 2 meter satellite dish operating on C band, the beamwidth is about 2.6°, while for the Arecibo antenna, it was 0.028°, showing that parabolic antennas can produce very narrow beams, making aiming them a problem.

Additional reading: 2 Way Radio Cell Phones

A reflector antenna works by combining a reflecting surface and a feed element, which is the active element that provides excitation. This combination allows the antenna to change the radiation pattern of the radiating element.

The reflecting surface, also known as the passive element, guides the energy in an exact direction. This is achieved by directing the feed energy to the reflecting surface, which is located at a suitable position.

Reflector antennas are classified based on the geometrical configuration of the reflecting surface. Some popular forms include a paraboloid, which is a large, curved surface.

The radiation pattern of a paraboloid can be calculated using Huygens' principle, which is a way of describing the behavior of light and other electromagnetic waves. This principle is used to determine the electric field pattern of the radiation.

The electric field pattern can be found by evaluating the Fraunhofer diffraction integral over the circular aperture of the paraboloid. This formula involves the wavelength, diameter, and angle of the radiation.

Check this out: Antenna Feed

The beamwidth of the radiation pattern, which is the angle between the first nulls, can be determined using the first-order Bessel function. This function is used to calculate the electric field pattern, and it is also used to determine the beamwidth.

The beamwidth can be approximated using the formula θ0 ≈ 1.22λ/D, where λ is the wavelength and D is the diameter of the aperture. This formula is commonly used to determine the beamwidth of a paraboloid.

Here's a summary of the different types of antennas:

These different types of antennas are classified based on their radiation patterns and are used in various applications, including communication systems and radar systems.

Measurements are crucial in establishing the performance indicators of reflector antennas, such as gain and sidelobe levels.

To make accurate measurements, it's essential to ensure the beam is fully formed. This is typically achieved at a distance of four Rayleigh distances from the antenna.

Gain is a crucial performance indicator of an antenna, and it's directly related to the antenna's size and shape. For a parabolic antenna, the gain is determined by the aperture efficiency, which is influenced by the feed antenna's radiation pattern.

A larger antenna aperture generally results in higher gain, but there's an inverse relation between gain and beam width. This means that as the beam width decreases, the gain increases. The beam width is typically measured by the half-power beam width (HPBW), which is the angular separation between the points on the antenna radiation pattern where the power drops to one-half (-3 dB) its maximum value.

For a typical 2 meter satellite dish operating on C band (4 GHz), the beam width is about 2.6°, resulting in a relatively high gain. In contrast, the Arecibo antenna at 2.4 GHz has a beam width of only 0.028°, making it one of the highest-gain antennas in the world.

Recommended read: Firestik 2 Cb Antenna

The gain of an antenna is also affected by the shape of the reflector and the feed illumination pattern. For an ideal uniformly illuminated parabolic reflector, the gain is maximized when the radiation from the feed is evenly distributed across the dish. However, in practice, the feed antenna's radiation pattern often drops off gradually at the edges, resulting in some spillover and reduced gain.

Here's a rough estimate of the gain of a parabolic antenna based on its diameter:

Keep in mind that this is a rough estimate and actual gain values can vary depending on the specific antenna design and operating conditions.

Reflector antennas have several advantages that make them a popular choice in various applications. They are versatile, with outstanding radiation performances, and the parabolic type antenna has high gain and high directivity.

The parabolic reflector also decreases minor lobes and has a fairly low amount of power wastage compared to other antennas. This makes them a cost-effective option in the long run.

Here are some of the key advantages of reflector antennas:

However, reflector antennas also have some disadvantages. They can be complex to design and require precise placement of the feed element to achieve optimal performance. Additionally, the surface distortions in the parabolic reflector can lead to issues with large dishes.

Reflecting on the benefits of reflector antennas, it's clear that they offer a lot of advantages. They are versatile, which makes them suitable for a wide range of applications.

One of the standout features of parabolic reflector antennas is their high gain and directivity. This means they can focus energy in a specific direction, making them more efficient.

The parabolic reflector also decreases minor lobes, which helps to minimize signal loss. This is especially important in applications where every bit of signal strength counts.

Another advantage of reflector antennas is that they reduce the wastage of power compared to other antennas. This is a significant benefit, as it can help to extend battery life in portable devices.

Here's an interesting read: Signal Strength in Telecommunications

One of the most convenient features of parabolic reflector antennas is the flexibility to place the feed element in any location. This makes it easier to design and implement antenna systems.

Here are some of the key advantages of reflector antennas:

The reflector antenna, while having its advantages, also has some significant drawbacks. One of the main disadvantages is that it needs to be balanced to avoid obstructing the feed point.

The parabolic type antenna design is a complex procedure, which can be a challenge for some users.

Surface distortions can occur in large parabolic reflector antennas, but this can be minimized by using a broad mesh instead of a continuous surface.

The size of a reflector antenna can be quite large, and the overall cost is often high.

To achieve optimal performance, the feed should be placed exactly at the focus of the parabolic antenna, but this can be difficult to achieve in practice.

Here is a summary of the disadvantages of a reflector antenna:

Reflector antennas have a wide range of applications, including satellite communications, radars, deep-space telemetry, radio astronomy, and remote sensing.

These antennas are extensively used in point-to-point communication, remote sensing, satellite communication, deep-space telemetry, and TV signal broadcasting.

Reflector types are also applicable in radio astronomy, weather radar, and in spacecraft systems.

The performance of the antenna can be enhanced with reflectors, so reflector antennas are used to enhance directivity.

A reflector antenna is utilized within spacecraft applications, and its range of operating frequency is usually above 1 MHz.

The principle of operation of a reflector antenna involves the geometry of a parabolic reflector, where the point F is the focus and V is the vertex, and the line joining F and V is the axis of symmetry.

The law of reflection states that the angle of incidence and the angle of reflection are equal, which helps the beam focus when used along with a parabola.

The f/D ratio, or the ratio of focal length to aperture size, is an important parameter of parabolic reflector, with a value that varies from 0.25 to 0.50.

A unique perspective: Global Alliance for Information and Communication Technologies and Development

Standalone reflectors are designed to redirect electromagnetic energy, typically in the radio wavelength range.

One common type of standalone reflector is the corner reflector, which reflects the incoming signal back to its source, often used in radar applications.

A flat reflector, on the other hand, reflects the signal like a mirror and is sometimes used as a passive repeater.

Here are some common standalone reflector types:

Reflector antennas are used in a variety of applications, including satellite communications, radars, deep-space telemetry, radio astronomy, and remote sensing. These antennas are essential components in communication and radar systems.

Reflector antennas are extensively used in point-to-point communication, remote sensing, satellite communication, deep-space telemetry, and TV signal broadcasting. They are also used in radio astronomy, weather radar, and spacecraft systems.

The performance of the antenna can be enhanced with reflectors, allowing for improved directivity. This is why reflector antennas are used to enhance directivity.

Some of the most commonly used types of reflector antennas include simple parabolic reflectors and cassegrain feed parabolic reflectors. These types are used in satellite communications and wireless telecommunication systems.

Here are some of the key applications of reflector antennas:

The parabolic reflector is a crucial component in many antennas, and understanding its principle of operation is essential. The geometry of a parabolic reflector is defined by its focus, vertex, and axis of symmetry.

The point F is the focus, where the feed is given, and V is the vertex. The line joining F and V is the axis of symmetry. PQ are the reflected rays where L represents the line directrix on which the reflected points lie.

The law of reflection states that the angle of incidence and the angle of reflection are equal. This law, combined with the parabolic shape, helps to focus the beam. The shape of the parabola exhibits properties that are helpful for building an antenna.

The ratio of focal length to aperture size, known as f/D, is an important parameter of parabolic reflectors. Its value typically varies from 0.25 to 0.50. This ratio plays a significant role in determining the performance of the antenna.

The parabolic reflector is designed to reflect waves into a collimated wave front. The reflected wave forms a collimated wave front, out of the parabolic shape. This is a result of the parabola's properties and the law of reflection.
