Understanding ANSI/TIA-568 Cabling Systems is crucial for any network setup. The standard defines the minimum requirements for cabling systems in commercial buildings.

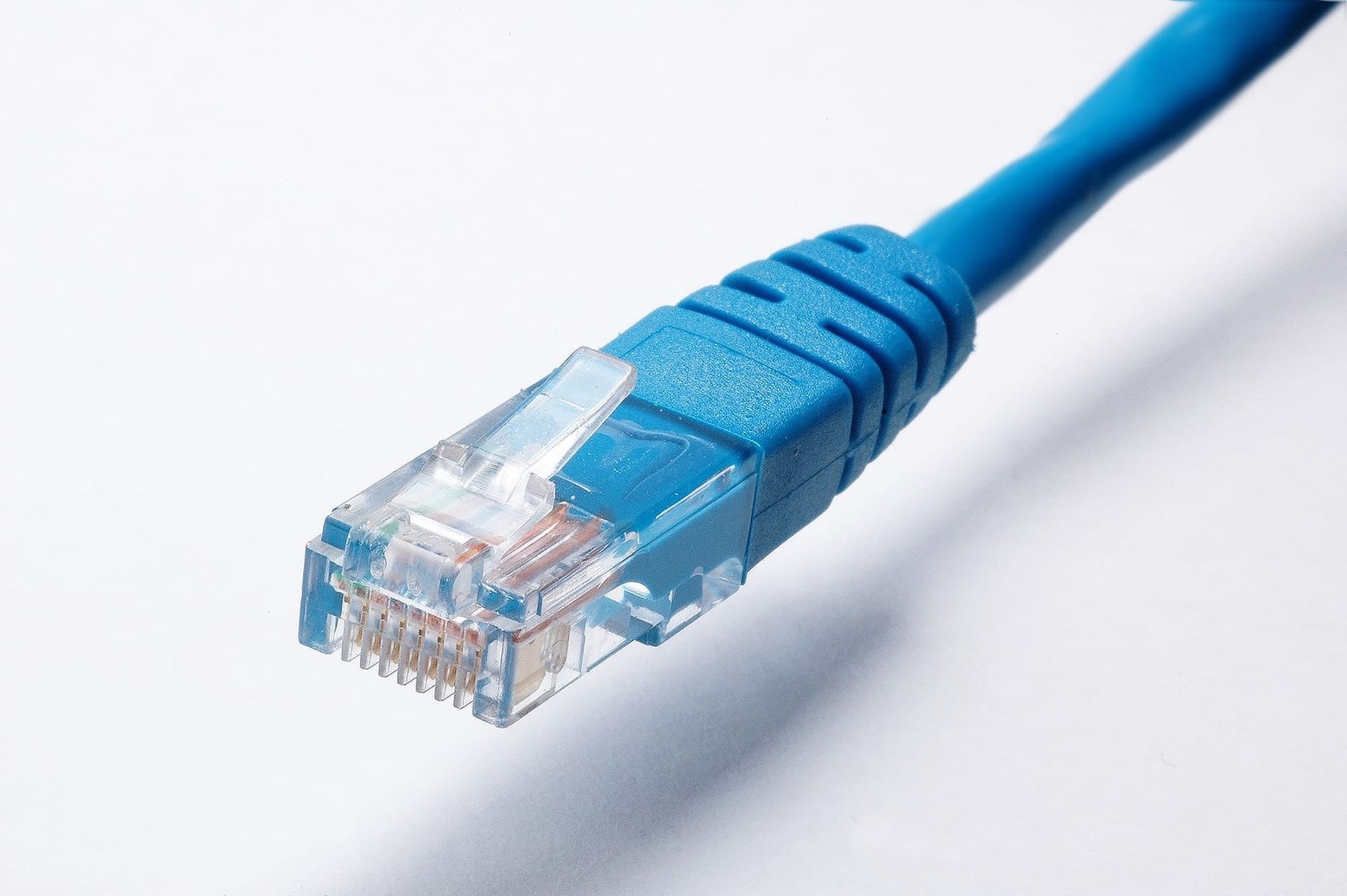

The standard specifies the use of 8-pin modular connectors for patch cords and patch panels. This ensures compatibility and ease of use.
Cable categories are defined to ensure the correct type of cable is used for different applications. The most common categories are Category 5e, Category 6, and Category 7.
Each category has its own bandwidth and speed limits, with higher categories supporting faster data transfer rates.
Take a look at this: Secondary Frequency Standard
Categories of Cables
Categories of Cables are defined by the standard, which categorizes shielded and unshielded twisted pair cable systems based on their performance in signal bandwidth, insertion loss, and cross-talk.
Generally, increasing category numbers correspond with a cable system suitable for higher rates of data transmission. Category 3 cable was suitable for telephone circuits and data rates up to 16 million bits per second.
The standard defines categories of cable systems, with Category 3, 4, and 5 being the original categories defined in the 1995 edition. Categories 1 and 2 were excluded from the standard since these categories were only used for voice circuits, not for data.
Here's a comparison of cable categories:
The current revision includes Category 5e (100 MHz), 6 (250 MHz), 6A (500 MHz), and 8 (2,000 MHz). Categories 7 and 7A were not officially recognized by TIA and were generally only used outside the United States.
Structured Cabling System
A structured cabling system is the backbone of any telecommunications infrastructure. It's a hierarchical architecture that connects various components of the network, making it easier to manage and maintain.
The main cross-connect (MCC) is the central point of this system, connected via a star topology to intermediate cross-connects (ICCs) and horizontal cross-connects (HCCs). This setup is similar to the traditional telecommunications design topology.
Horizontal cross-connects provide a consolidation point for all horizontal cabling, extending in a star topology to individual work areas like cubicles and offices. The maximum allowable horizontal cable distance is 90 meters of installed twisted-pair cabling, with a total length of 100 meters including patch cords.
Patch cords are used to connect equipment to horizontal cabling, and no patch cord should be longer than 5 meters. Optional consolidation points are also allowed in horizontal cables, which can be beneficial for open-plan office layouts.
The TIA/EIA-568 standard defines characteristics and cabling requirements for entrance facilities, equipment rooms, and telecommunications rooms. This ensures that the structured cabling system meets the necessary performance specifications for data transmission.
Here's a breakdown of the maximum allowable horizontal cable distance and patch cord length:
Standards and Compliance
Standards and Compliance are crucial for the success of any telecommunications project. ANSI/TIA-568 is a widely adopted standard for telecommunications cabling.
The standard is maintained by the Telecommunications Industry Association (TIA) and is accredited by the American National Standards Institute (ANSI). This means that the standard is developed and reviewed by a diverse group of experts to ensure it meets the needs of the industry.
ANSI/TIA-568 is a family of standards that covers various aspects of telecommunications cabling, including balanced twisted-pair cabling, optical fiber cabling, and broadband coaxial cabling. The standard is regularly updated to reflect new technologies and best practices.
One of the key aspects of ANSI/TIA-568 is the categorization of cabling. The standard defines several categories of cabling, including Category 5e, Category 6, and Category 8. Each category has its own set of requirements and specifications.
Here are some of the key categories of cabling defined in ANSI/TIA-568:
- Category 5e: Supports speeds up to 1 Gbps
- Category 6: Supports speeds up to 10 Gbps
- Category 8: Supports speeds up to 40 Gbps
The standard also covers the requirements for cabling components, such as connectors and patch cords. These components must meet specific standards and specifications to ensure compatibility and performance.
In addition to the technical requirements, ANSI/TIA-568 also provides guidance on installation and testing procedures. This includes recommendations for cable installation, termination, and testing to ensure that the cabling system meets the required standards.
Compliance with ANSI/TIA-568 is essential for ensuring the reliability and performance of telecommunications systems. Non-compliance can result in reduced speeds, increased errors, and even system failures.
The standard is widely adopted in the industry, and many manufacturers and installers have products and services that are certified to meet the requirements of ANSI/TIA-568. This provides a level of assurance that the cabling system will meet the required standards and perform as expected.
In summary, ANSI/TIA-568 is a comprehensive standard that covers all aspects of telecommunications cabling. Compliance with the standard is essential for ensuring the reliability and performance of telecommunications systems.
Termination and Wiring
The ANSI/TIA-568 standard defines two alternative pinouts: T568A and T568B. These pinouts are critical because cables don't function if the pinouts at their two ends aren't correctly matched.
The standard recommends the T568A pinout for horizontal cables, which is compatible with the 1-pair and 2-pair Universal Service Order Codes (USOC) pinouts.
The T568A and T568B pinouts differ only in the assignment of pairs 2 and 3. In T568A, pair 2 is assigned to pins 1 and 2, while in T568B, pair 2 is assigned to pins 2 and 3.
Readers also liked: Fast Pair
Here's a summary of the wiring for T568A and T568B:
Both T568A and T568B configurations wire the pins "straight through", meaning pins 1 through 8 on one end are connected to pins 1 through 8 on the other end.
Theory and Transmission
Transmission requirements are crucial for maintaining signal quality in cable networks. The loss of signal power due to signal reflection at a discontinuity in the cable is known as Return Loss.
Return Loss can be measured in various ways, but it's essential to understand that it's not the only factor affecting signal quality. Insertion Loss, on the other hand, occurs when devices are connected inline, resulting in a loss of signal power.
Here's a breakdown of some key transmission requirements:
- Return Loss: The loss of signal power as a result of signal reflection at a discontinuity in the cable.
- Insertion Loss: The loss of signal power that results from devices inline.
- Near End Crosstalk Loss (NEXT): Loss caused by interference between two pairs in the cable, measured at the same end of the cable as the transmitter.
- Power Sum Near End Crosstalk Loss (PSNEXT): Loss caused by the sum of near–end crosstalk of three pairs in the cable as they affect the fourth.
- Far End Crosstalk Loss (FEXT): Loss caused by interference between two pairs in the cable, measured at the opposite end of the cable from the transmitter.
T1 Connectivity Use
T1 connectivity uses pairs 1 and 3 (T568A) for Digital Signal 1 (T1) service. This is a crucial aspect of setting up T1 connectivity.
The USOC-8 jack is wired according to the RJ-48C specification, which is a standard for T1 connections. This ensures that the connection is reliable and efficient.
Vendor cables are often wired with tip and ring reversed, which means pins 1 and 2 or 4 and 5 are swapped. This does not affect the quality of the T1 signal, which is fully differential and uses the alternate mark inversion (AMI) signaling scheme.
The termination jack is often wired according to the RJ-48X specification, providing a transmit-to-receive loopback when the plug is withdrawn. This is a useful feature for troubleshooting and testing T1 connections.
Theory
The original idea in wiring modular connectors was that the first pair would go in the center positions, the next pair on the next-innermost ones, and so on.
Signal shielding would be optimized by alternating the live and earthy pins of each pair. This is a key consideration in designing reliable and efficient transmission systems.
The TIA-568 terminations diverge from this concept, placing a pair on pins 1 and 2 and one on 7 and 8. This design choice is made to accommodate high-speed LAN protocols.
Balanced line performance is critical for meeting the electrical requirements of these protocols, and the TIA-568 arrangement helps to achieve this.
A fresh viewpoint: List of Wireless Network Protocols
Transmission Requirements
Transmission Requirements are crucial for ensuring the integrity and quality of your signal transmission. Return Loss is the loss of signal power as a result of signal reflection at a discontinuity in the cable. This can be a significant issue if not properly addressed.
Insertion Loss is the loss of signal power that results from devices inline, and it's essential to consider this when designing your transmission system. A high Insertion Loss can lead to signal degradation and reduced overall system performance.
Near End Crosstalk Loss (NEXT) is a major concern in transmission systems, and it's measured at the same end of the cable as the transmitter. This type of interference can be particularly problematic in high-density cable installations.
Power Sum Near End Crosstalk Loss (PSNEXT) takes into account the combined effect of crosstalk from multiple pairs, making it a more comprehensive measure of transmission quality. This metric is essential for evaluating the overall performance of your transmission system.
Far End Crosstalk Loss (FEXT) is another critical aspect of transmission requirements, measured at the opposite end of the cable from the transmitter. This type of interference can be difficult to detect and mitigate, making it essential to monitor and control FEXT levels.
Here's a summary of the key transmission requirements:
- Return Loss: measures signal reflection at a discontinuity in the cable
- Insertion Loss: measures signal loss due to devices inline
- Near End Crosstalk Loss (NEXT): measures interference between pairs at the same end of the cable
- Power Sum Near End Crosstalk Loss (PSNEXT): measures combined crosstalk from multiple pairs
- Far End Crosstalk Loss (FEXT): measures interference between pairs at the opposite end of the cable
- Attenuation Crosstalk Ratio Far End (ACRF): measures the difference between signal attenuation and far-end crosstalk
- Power Sum Attenuation Crosstalk Ratio Far End (PSACRF): measures the difference between signal attenuation and power sum far-end crosstalk
- Transverse Conversion Loss (TCL): measures the ratio of common mode voltage to differential mode voltage
- Equal Level Transverse Conversion Transfer Loss (ELTCTL): measures the ratio of common mode voltage to differential mode voltage, normalized to be independent of length
- Coupling Attenuation: measures the ratio of wanted signal power to unwanted radiated power
- Propagation Delay: measures the time it takes for a signal to travel from the transmitter to the receiver
- Propagation Delay Skew: measures the difference in propagation delay between the fastest and slowest pairs
- Power Sum Alien Near–End Crosstalk Loss (PSANEXT): measures loss on one pair caused by alien crosstalk from other cables
- Average Power Sum Alien Near End Crosstalk Loss (Average PSANEXT): measures average loss on all pairs caused by alien crosstalk from other cables
- Power Sum Alien Far–End Crosstalk Loss (PSAFEXT): measures loss on one pair caused by alien crosstalk from other cables at the opposite end of the cable
- Power Sum Alien Attenuation to Crosstalk Ratio Far–End (PSAACRF): measures the difference between signal attenuation and power sum alien far-end crosstalk
Compatibilidade com Versões Anteriores
The ANSI/TIA-568 standard has a complex relationship with older versions of connectors. Both T568A and T568B are compatible with the first line of connectors RJ11, RJ14, RJ25, and RJ61, which have the first pair in the central pins of these connectors.
Older USOC connectors have the first pair in the central pins as well, making them compatible with T568A and T568B. However, this compatibility comes with a catch.
Using a second line on USOC connectors can lead to confusing connections, especially in telephone applications. The T568B standard can be particularly confusing in such cases.
It's worth noting that USOC plugs cannot be directly connected to certain pairs on T568A or T568B connectors without dividing the pairs. This can result in no connection at all or unacceptable levels of buzzing, crosstalk, and noise.
Worth a look: Ethernet in the First Mile
What is TIA and ANSI?
TIA stands for the Telecommunications Industry Association, which was officially founded in 1988 through the merger of two other organizations. It has a global membership of over 400 companies.
TIA is accredited by the American National Standards Institute (ANSI), which oversees the development of voluntary standards for products, services, processes, systems, and personnel in the United States. ANSI/TIA is a common prefix for telecommunications standards.
TIA's Standards and Technology Department operates engineering committees that develop standards for various areas, including telecommunications cabling systems and performance and accessibility for communications products. These committees work on specific standards such as TR-42 and TR-41.
Some of the areas that TIA's engineering committees focus on include mobile and personal private radio standards, satellite equipment and systems, and vehicular telematics. These standards are crucial for the development and implementation of telecommunications technologies.
